Easy DIY Low-Voltage Landscape Lighting

Thinking about adding some glow to your yard without hiring a pro? You’re in the right place. Low-voltage landscape lighting is surprisingly simple to install yourself, and it’s a fantastic way to enhance your home’s curb appeal, improve safety, and create a warm, inviting atmosphere after dark. We’re talking about a project that most homeowners can tackle in an afternoon or a weekend, even with minimal DIY experience. It’s a lot less intimidating than it sounds, and the results are incredibly rewarding.

There’s a good reason why low-voltage systems are so popular for landscape lighting. They offer a ton of benefits that make them ideal for DIYers.

Safer and Easier to Work With

Unlike standard household electricity (120 volts), low-voltage systems operate at 12 or 24 volts. This significantly reduces the risk of electric shock, making it much safer for you to install and maintain. You won’t need an electrician for most of the work, which saves you money and hassle. Plus, the wiring is much less rigid and easier to maneuver around your garden.

Flexible and Expandable

With low-voltage lighting, you have a lot of freedom to customize your setup. You can easily add or move fixtures as your landscaping changes or as you discover new areas you want to highlight. Most systems use a simple “daisy chain” or “hub and spoke” wiring method, which is incredibly forgiving for modifications.

Energy Efficient

LED technology has truly revolutionized landscape lighting. Modern low-voltage LED bulbs consume significantly less energy than traditional incandescent bulbs, which means lower electricity bills and a smaller carbon footprint. They also last much longer, reducing the frequency of bulb replacements.

Cost-Effective in the Long Run

While the initial investment in good quality fixtures and a transformer might seem like an outlay, the long-term savings on electricity and maintenance often make low-voltage systems a more economical choice than other lighting options. You won’t be paying for an electrician every time you want to add a light, and those long-lasting LED bulbs really do add up.

Planning Your Lighting Design

Before you start digging, it’s a good idea to have a plan. Thinking through your objectives will help you choose the right fixtures and placement for the best results.

Identifying Your Goals

What do you want your lights to accomplish? Are you looking to:

• Highlight architectural features? Think about washing light up a beautiful stone wall or accentuating a unique doorway.
• Illuminate pathways for safety? Good lighting prevents trips and falls, making your yard safer for everyone.
• Showcase specific plants or trees? Uplighting can create dramatic effects on a sculptural tree or a vibrant shrub.
• Create ambiance for outdoor living spaces? Soft, diffused light can make a patio or deck feel intimate and inviting.
• Enhance security? Well-placed lights can deter unwelcome visitors by eliminating dark hiding spots.

Often, you’ll have a combination of these goals. Make a list of what’s important to you.

Sketching Your Layout

Grab a piece of paper and draw a rough sketch of your yard. Mark down key features like your house, pathways, trees, shrubs, and any outdoor living areas. Now, start indicating where you’d like to place lights. Don’t be afraid to try different ideas.

Choosing the Right Fixtures

There’s a vast array of low-voltage fixtures available, each designed for a specific purpose. Understanding the basic types will help you make informed choices.

• Spotlights: These produce a narrow, focused beam of light, perfect for highlighting specific objects like a statue, a striking tree, or architectural details.
• Wash Lights: Also known as floodlights, these offer a wider, softer spread of light, ideal for illuminating larger areas like the front of your house, a garden bed, or a feature wall.

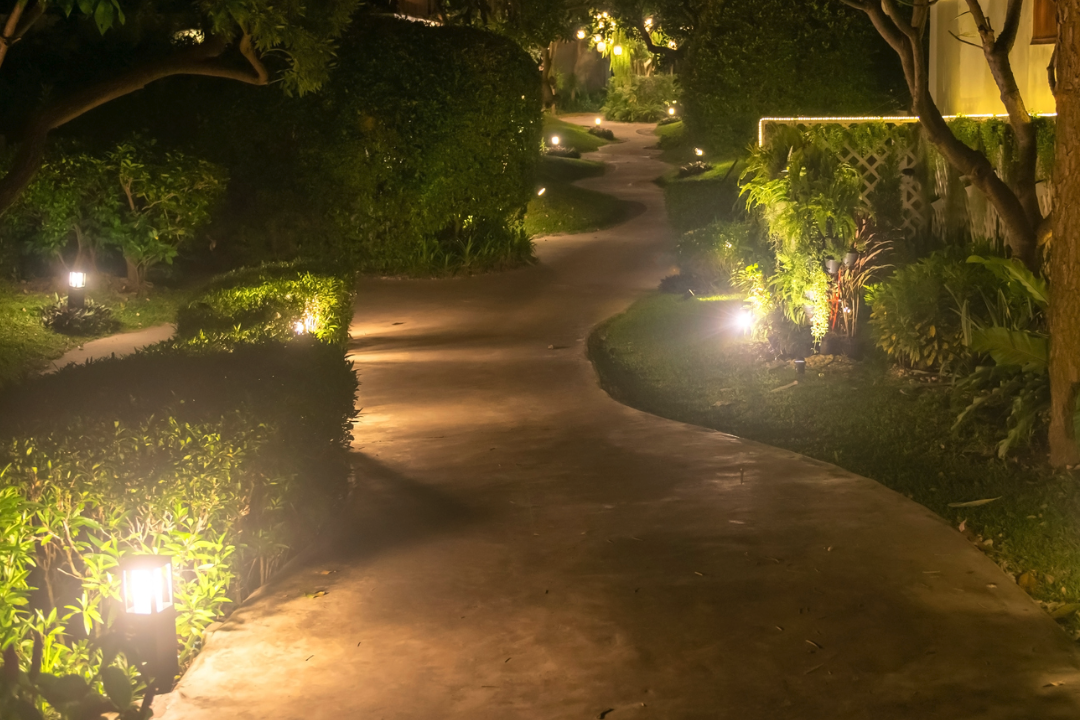

• Path Lights: Designed to illuminate walkways and driveways, path lights typically have a downward-facing reflector to spread light evenly on the ground.
• Deck Lights: Small, discreet fixtures often mounted on stairs, railings, or under capstones to provide subtle illumination and enhance safety on decks and patios.
• Well Lights (Uplights): These are installed flush with the ground and project light upwards. They are excellent for dramatic uplighting of trees, walls, or fences, offering a very clean, integrated look.
• Underwater Lights: If you have a pond or water feature, these specialized lights can create stunning effects when submerged.
• Integrated Strip Lights: Flexible LED strips that can be used for accent lighting under stairs, along railings, or to highlight architectural lines.

Consider the style of your home and garden when choosing fixtures. Do you want something sleek and modern, or more traditional and rustic?

Experimenting with Placement

Before you buy anything, try a “night walk-through.” During the day, place stakes or even just stand in spots where you’re considering lights. Then, after dark, imagine what it would look like. Better yet, if you have some portable flashlights, try shining them from those positions to simulate the effect. This simple step can save you a lot of time and money by helping you visualize the outcome.

Gathering Your Tools and Materials

Once you have your plan, it’s time to assemble what you’ll need. Don’t worry; it’s a fairly basic toolkit.

Essential Tools

• Wire Strippers: For safely removing insulation from wires.
• Shovel or Trowel: For digging shallow trenches for your cable. A trenching tool can make this even easier for long runs.
• Screwdrivers (Phillips and Flathead): For connecting wires to the transformer and sometimes for assembling fixtures.
• Measuring Tape: To calculate cable runs and fixture spacing.
• Utility Knife or Cable Cutter: For cutting the low-voltage cable.
• Voltage Meter (Optional but Recommended): To test connections and ensure proper voltage.
• Gloves and Safety Glasses: Always a good idea for any outdoor project.

Key Materials

• Transformer: This is the heart of your low-voltage system. It converts your household 120-volt AC power to 12 or 24-volt AC.
• Choosing the Right Size: The total wattage of all your lights should not exceed 80% of your transformer’s capacity. For example, a 100-watt transformer can comfortably handle 80 watts of lighting. It’s always better to oversize slightly to allow for future expansion.
• Types: Look for transformers with built-in timers, photocells (to turn on at dusk and off at dawn), or smart home compatibility for convenience. Many also have multiple voltage taps (e.g., 12V, 13V, 14V) to compensate for voltage drop on longer runs.
• Low-Voltage Cable: Typically 12-gauge or 14-gauge direct burial cable.
• Gauge Matters: Lower gauge numbers mean thicker wire, which allows for longer runs and less voltage drop. For most DIY projects, 12-gauge is a good all-around choice. 14-gauge might be okay for very short runs with fewer lights.
• Direct Burial: Ensure the cable is rated for direct burial. This means it has robust insulation designed to withstand underground conditions.
• Lighting Fixtures: As discussed in the planning section, choose the types that meet your design goals.
• Connectors:
• Wire Nuts (Silicone-Filled): Essential for making waterproof connections between fixture wires and the main cable. Look for gel-filled or silicone-filled types to prevent moisture intrusion.
• Quick Connectors: Some modern fixtures come with quick-connect clamps that simplify attachment to the main cable.
• Small Stakes or Ground Anchors: Most fixtures come with these for positioning.
• Gravel or Sand (Optional): For creating a buffer around the cable in some trenching situations.

Step-by-Step Installation Process

With your plan and materials in hand, you’re ready to get started. Take your time and follow these steps.

Mount the Transformer

1. Choose a Location: Find a convenient outdoor electrical outlet (GFCI protected is ideal) to plug in your transformer. It should be securely mounted to a sturdy surface like a wall or fence post.
2. Weather Protection: Ensure the transformer is protected from direct rain and extreme weather, perhaps under an overhang or a dedicated weatherproof cover. Some transformers are rated for direct exposure, but extra protection never hurts.
3. Secure Mounting: Use appropriate screws or anchors to firmly attach the transformer to its chosen spot. You want it to be stable and not easily knocked around.

Laying Out the Cable

1. Uncoil and Position: Start at the transformer and uncoil your low-voltage cable, roughly laying it out along the path where your lights will go. Don’t bury it yet!
2. Test Fit Fixtures: Place your light fixtures approximately where you intend them to be. This is your last chance to adjust spacing and see how the layout looks before making permanent connections.
3. Creating a “Loop” or “Trunk”: For best results and to minimize voltage drop, try to design your cable layout as a continuous loop, starting and ending at the transformer. If a loop isn’t practical for your layout, a “trunk line” with branches off to lights is also common.

Connecting the Lights

1. Strip Wires: Carefully strip about 1/2 to 3/4 inch of insulation from the ends of your fixture wires and from the main low-voltage cable where you’ll connect each fixture.
2. Use Weatherproof Connectors: Twist the bare fixture wires together with the bare main cable wires. Slide a silicone-filled wire nut or use a quick connector to secure the connection. Twist the wire nut tightly until you feel resistance. Ensure no bare wire is exposed.
3. Maintain Polarity (Usually): Most low-voltage systems aren’t strictly polarity-sensitive, meaning it doesn’t usually matter which wire from the fixture connects to which wire on the main cable. However, some advanced systems or LED fixtures might specify. If there are distinct markings (e.g., ribbed vs. smooth insulation), try to keep them consistent for all connections. When in doubt, consult your fixture’s instructions.

Testing the System

1. Plug in the Transformer: Before burying anything, plug your transformer into the GFCI outlet.
2. Check All Lights: Walk around and ensure every light fixture is illuminating properly.
3. Troubleshoot (If Needed):

• No Lights On: Check the circuit breaker, the GFCI outlet, transformer connections, and ensure the transformer “on” switch or timer is engaged.
• Some Lights Out: Check the connections for that specific light. Make sure the bulb is seated correctly or isn’t faulty.
• Dim Lights: This could be a sign of voltage drop. Try using a higher gauge wire, shortening the cable run, or utilizing your transformer’s higher voltage taps (if available).

1. Adjust and Refine: Now’s the time to tweak the position of fixtures, adjust beam angles, and ensure everything looks just right.

Burying the Cable

1. Shallow Trenching: Dig trenches about 6-8 inches deep along your cable runs. This depth is typically sufficient to protect the cable from garden tools and foot traffic.
2. Safety First: Be mindful of existing buried utilities (gas, water, electrical, internet). Call 811 (in the US) or your local utility locating service before digging if you’re unsure.
3. Protect Connections: Tuck any wire connectors securely into the trench, ideally placing them in a small plastic conduit box or wrapped in electrical tape for added protection, especially in areas prone to moisture.
4. Backfill: Once the cable is laid, carefully backfill the trenches with soil. Step lightly to compress the soil, but avoid compacting it too much, which can damage the cable. You can place a layer of sand or gravel before backfilling if you want extra protection or drainage.

Tips for a Professional Finish

You’ve done the hard work, now let’s make it look like a pro did it.

Strategic Placement for Visual Impact

• Layering: Don’t just light everything evenly. Use different types of fixtures at varying intensities to create depth and interest. For example, use a spotlight on a specimen tree, wash lights on a wall, and path lights on a walkway.
• Shadows are Your Friend: Think about the shadows your lights will cast. A well-placed light can create dramatic and artistic silhouettes.
• Avoid Glare: Angle lights so that the bulb itself isn’t directly visible to someone walking by. This prevents glare and makes the lighting more pleasant. Use baffling or hoods on fixtures if necessary.
• Test at Night: The best way to judge lighting is after dark. Make small adjustments to fixture positions and angles until you achieve the desired effect.

Maintenance Matters

• Keep it Clean: Periodically wipe down light fixture lenses to remove dirt, dust, and spiderwebs. This ensures maximum light output.
• Monitor Connections: Occasionally check your wire connections for corrosion or loosening, especially in damp areas. Re-seal if necessary.
• Trim Foliage: As your plants grow, they can obstruct light beams. Trim back any foliage that starts to block your lights.
• Check Bulbs: Even long-lasting LEDs will eventually fade or fail. Keep a few spare bulbs on hand for easy replacement.
• Inspect Cable: If you notice any lights flickering or going out sporadically, inspect your buried cable for any damage.

Expanding Your System

• Plan for Growth: When purchasing your transformer, consider getting one with a higher wattage capacity than you initially need. This allows you to add more fixtures later without replacing the entire transformer.
• Keep it Balanced: When adding lights, try to distribute the load evenly across your runs to minimize voltage drop.

Common Mistakes to Avoid

Even with a relatively simple project like low-voltage lighting, there are a few common pitfalls that can trip up DIYers.

Overloading Your Transformer

This is a big one. Always calculate the total wattage of all your lights and ensure it’s comfortably within your transformer’s capacity (remember the 80% rule!). An overloaded transformer will overheat, potentially trip its thermal overload, or fail prematurely.

Ignoring Voltage Drop

If your lights at the far end of a long cable run seem dimmer than those closer to the transformer, you’re experiencing voltage drop. Thicker gauge wire (lower AWG number) and shorter runs help. Using a transformer with multiple voltage taps can also compensate, allowing you to feed higher voltage to longer runs.

Poor Wire Connections

Moisture and loose connections are the enemy of any outdoor electrical system. Use weatherproof connectors designed for direct burial. Skimping here will lead to intermittent lights or outright failure.

Placing Lights Too Close to Walls

When uplighting a wall or facade, give the fixture some distance. Too close, and you’ll get a “hot spot” – a bright, harsh circle of light with no smooth transition. Moving it back creates a more even, softer wash.

Forgetting GFCI Protection

While low-voltage is safer, the transformer itself plugs into a 120V outlet. Always use a Ground Fault Circuit Interrupter (GFCI) protected outlet for your outdoor transformer to prevent electric shock hazards.

By following these guidelines, you’ll be able to design, install, and enjoy a beautiful and functional low-voltage landscape lighting system that transforms your outdoor space. It’s a project that brings immediate satisfaction and lasting curb appeal, all achieved with your own two hands.
